Parkzone Stinson 3530

Parkzone Stinson 3530
Part # Stinson
Availability: In Stock
Price: $15.95
   - OR -
0 reviews  0 reviews  |  Please Login To Review This Product

Parkzone Stinson 3530 Parkzone Stinson 3530 Parkzone Stinson 3530 Parkzone Stinson 3530 Parkzone Stinson 3530 Parkzone Stinson 3530




The Parkzone Stinson 3530 series motor mount is CNC machined from billet aluminum.  A key feature to this mount is that it utilizes the stock plastic mount as a buffer zone in the event of a crash. The very inexpensive and easily replaceable stock plastic mount should take the impact instead of damaging the planes fuselage. No cowl modifications required. Simply bolt on and you are ready to fly.

Three step installation:

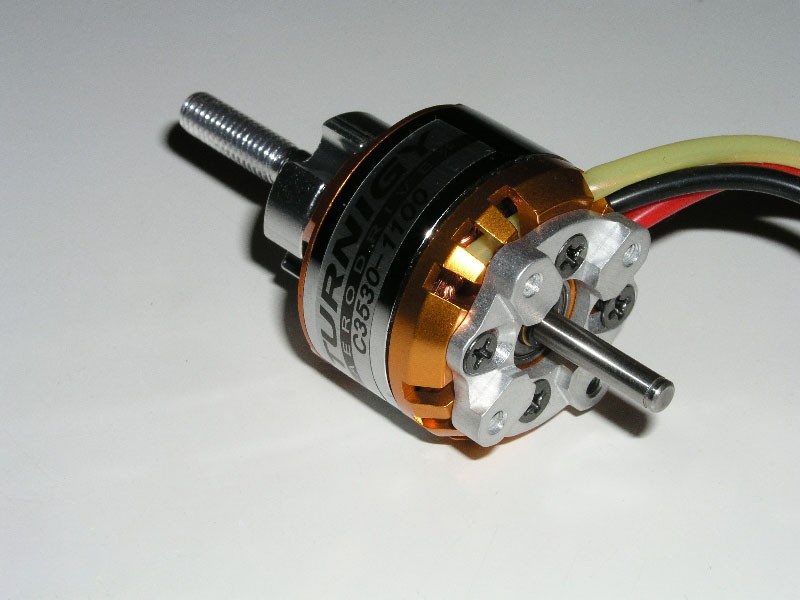

  1. Attach new motor to aluminum mount with the motors supplied screws
  2. Attach Parkzone stock plastic mount using the original motor screws
  3. Attach entire assembly to the planes fuselage with the original mounting screws

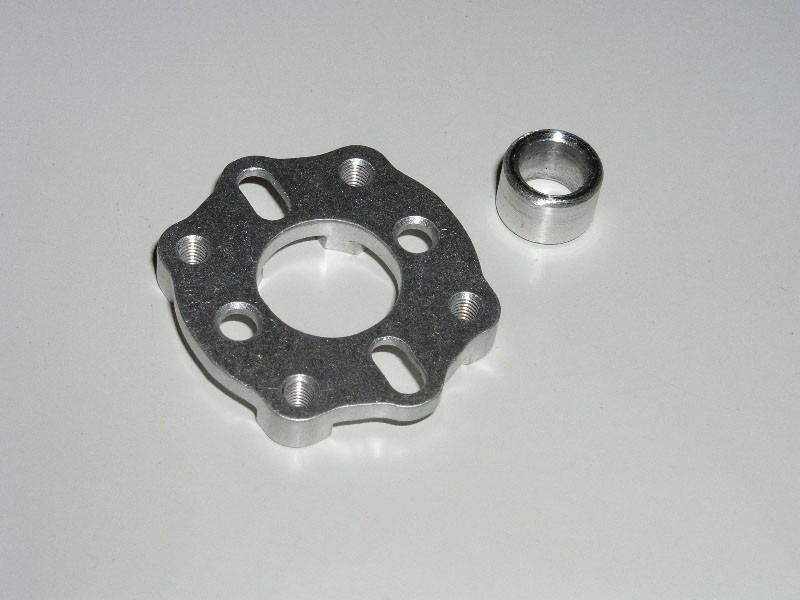

Included: 1 - Parkzone Stinson 3530 Aluminum Motor Mount with Propeller Spacer

Weight: 4.5g

Notes:

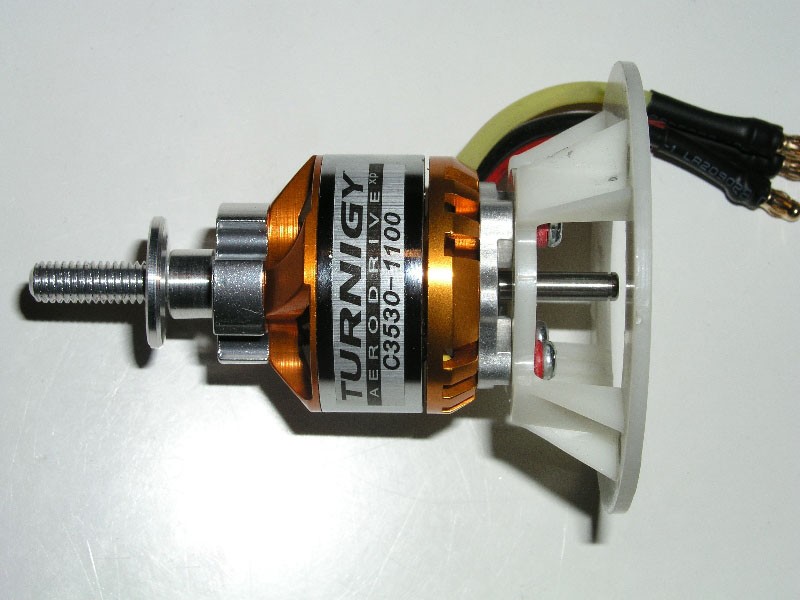

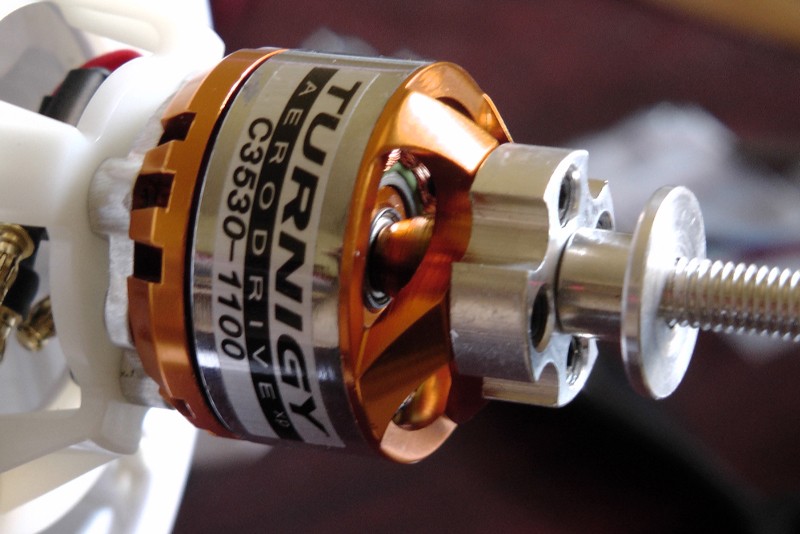

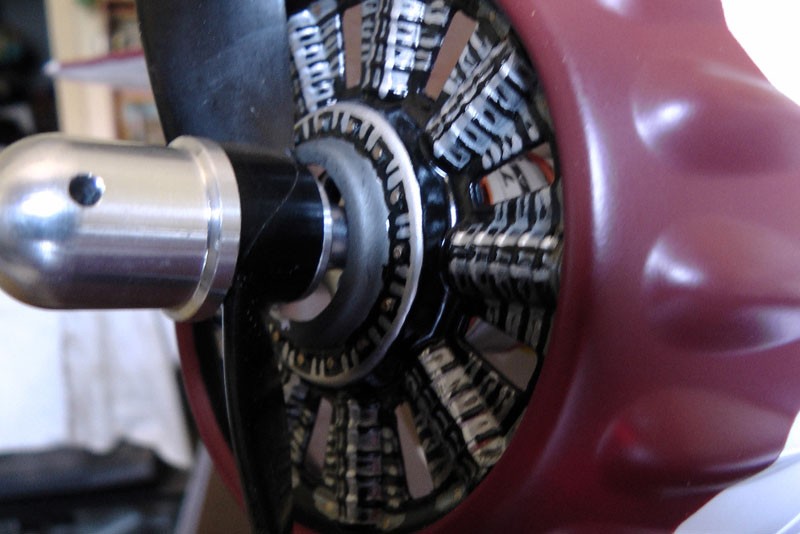

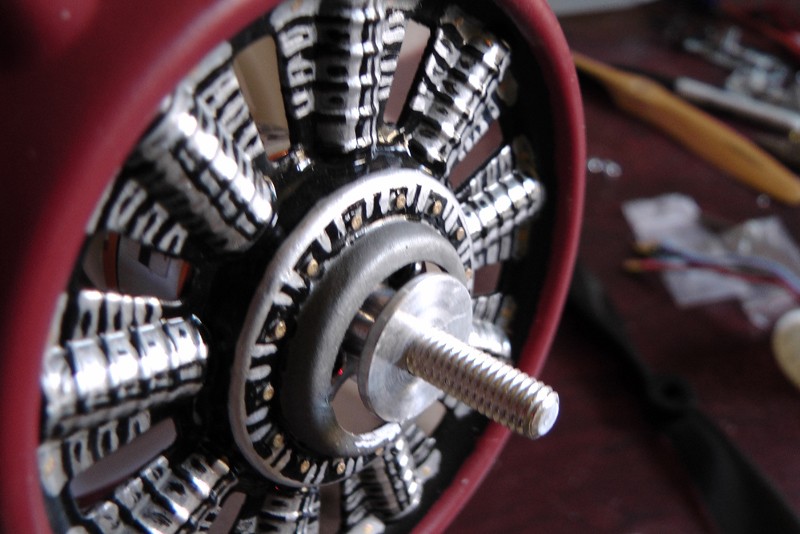

For proper cowl to propeller clearance on the 3530 motors that utilize the bolt on propeller shaft you will use the supplied prop spacer plus the flat washer that comes with the new motor as shown in the pictures. If using a standard 4mm motor shaft, or pressing the shaft forward on the motors utilizing a bolt on shaft, the stock collet adapter and nut will work great.


Compatible Motors

There is a large selection of motors to choose from.  Here are a few options.

Acceptable bolt patterns (units in mm):

  • 19x19
  • 19x25

Please contact us with any questions on motor compatibility.
